Hiro-design Off-axis Guider and FSQ-106ED
The off-axis guider has the same optical axis length as coupling (DT) [TKP36001] and coupling (TW) [TKA30003], and we can use all of Takahashi standard parts as on their system chart.
www.takahashi-europe.com/en/FSQ-106ED.systemcharts.php

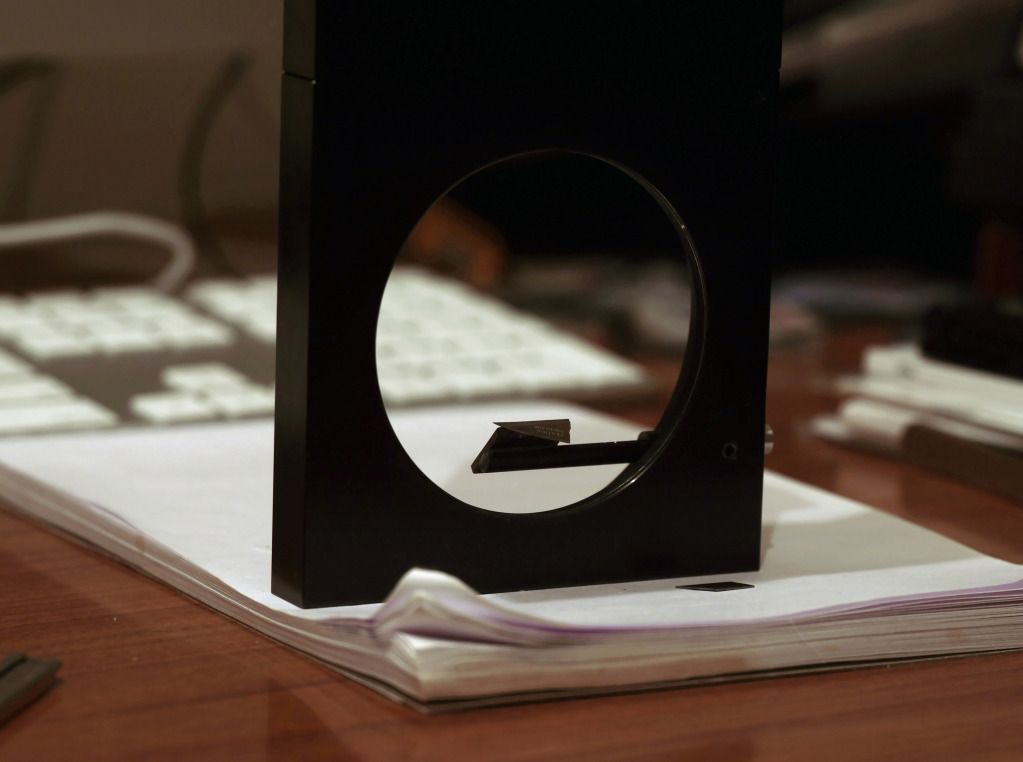

Here is a view of the OAG without the OTA. You can see a piece of #11 scalpel blade on the edge of the mirror inside. I put it to keep out the reflection at the edge.
